W2DTC's HOMEBREW RF AMPLIFIER
Grounded grid, Cathode driven, 3CX3000F7 Triodes

click on any photo to ENLARGE

An AM tube linear in Class 'A', with an efficiency of 20%, would require a plate dissipation of 7500 watts (1500/20%). A pair of 3CX3000F7 triodes was selected for the job. Initial testing of this amp was in class AB2. (Schematic diagrams starting at visual #31).  (Went back to one holer after 4 years, scroll down for details).

AMPLIFIER OVERVIEW:

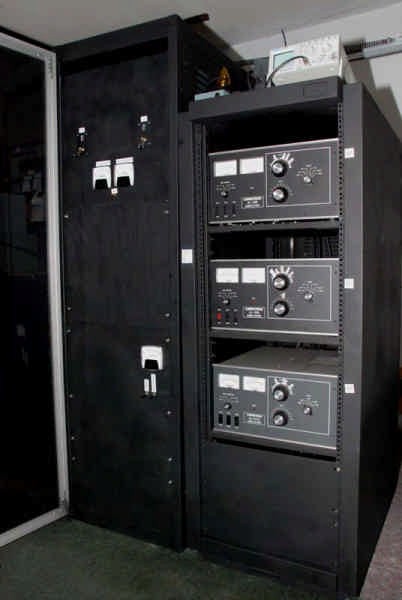

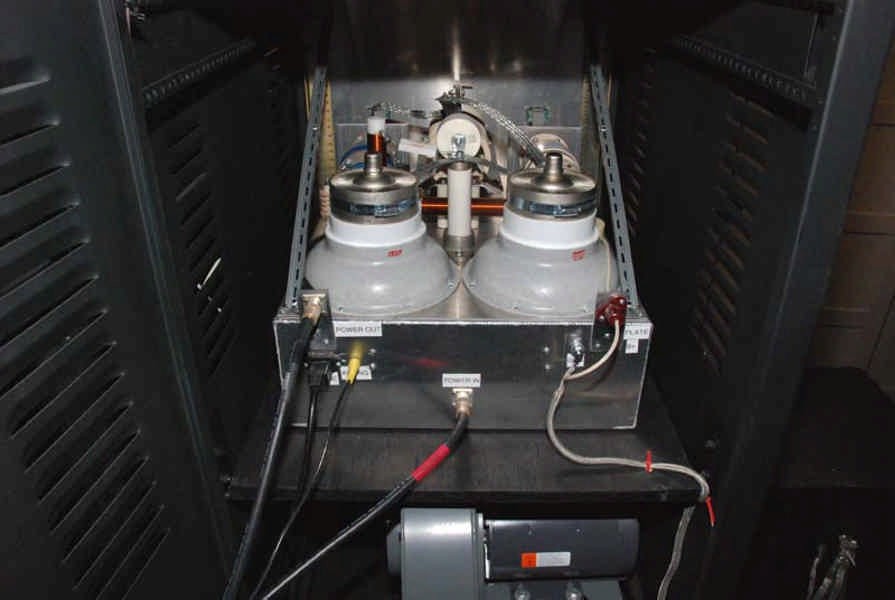

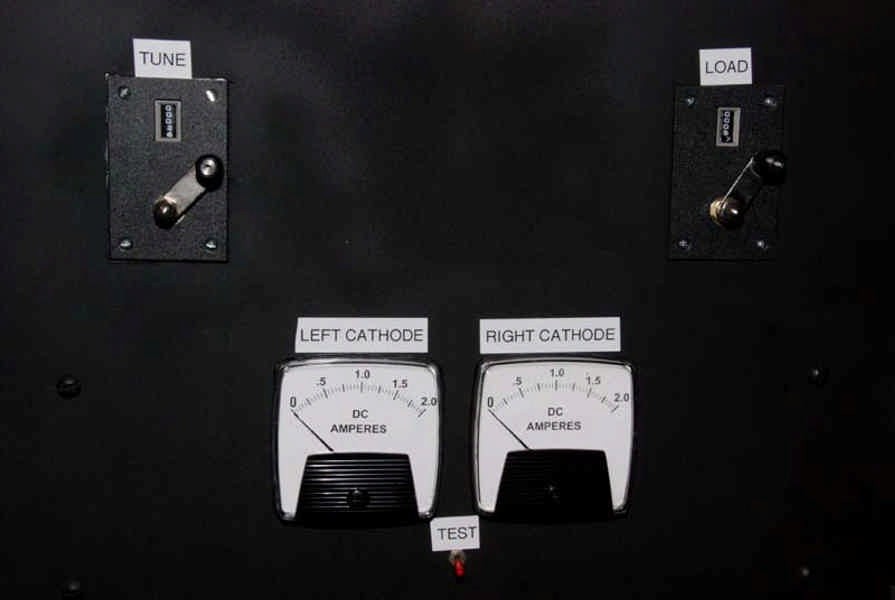

photo:  overview full rack       photo:  overview front       photo:  overview back       photo:  pi-network       photo:  overview bottom

INSTALLATION OF THE 3CX3000F7 TRIODES:

photo:  3CX3000F7's, hold down clamps and chimneys     photo:  plywood drill template     photo:  chassis with drilled holes for tube and tube cooling     photo:  tube mounted on chassis with hold down rings     photo:  tube showing the chimney insert
         1                        2                         3                         4                          5

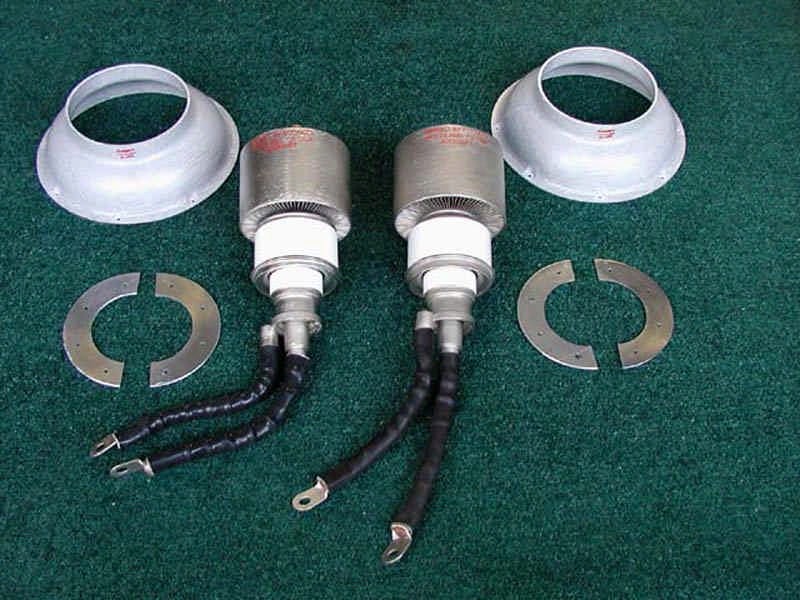

1: Oversized SK1406 chimneys, 3CX3000F7 tubes and 1/8" thick, 1" wide, half-circle
    aluminum tube clamps.

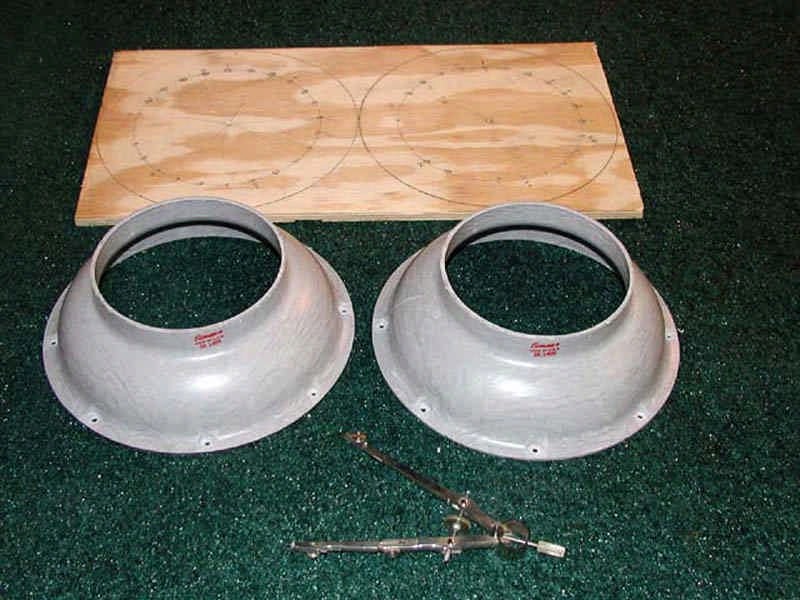

2: Created a 1/4 inch plywood "drill" template using the tube chimneys and a draftsman's
    compass.

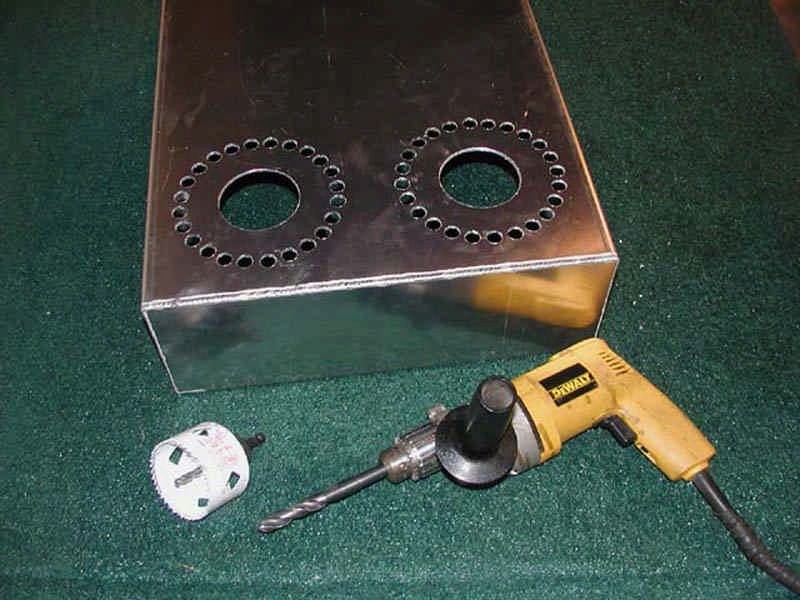

3: Three inch tube holes and 5/8 inch cooling holes drilled into 1/8" thick 22" x 17" x 6"
    aluminum chassis.

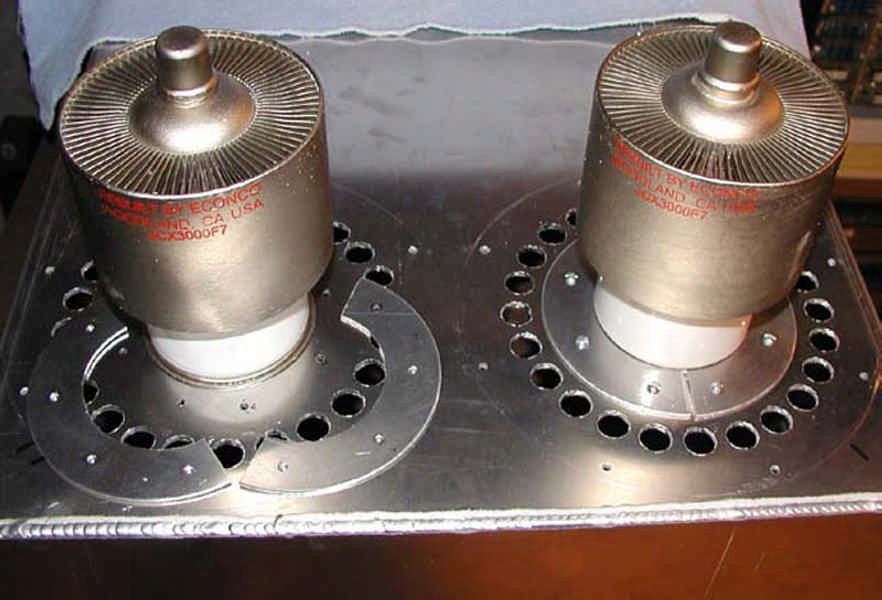

4: The tube grid rigs are larger than 3 inch chassis holes; therefore, the tubes sit on
    top of the chassis and the half-circle mounting strips are placed over the tube
    grid rings and fastened down with 6-32 hardware.

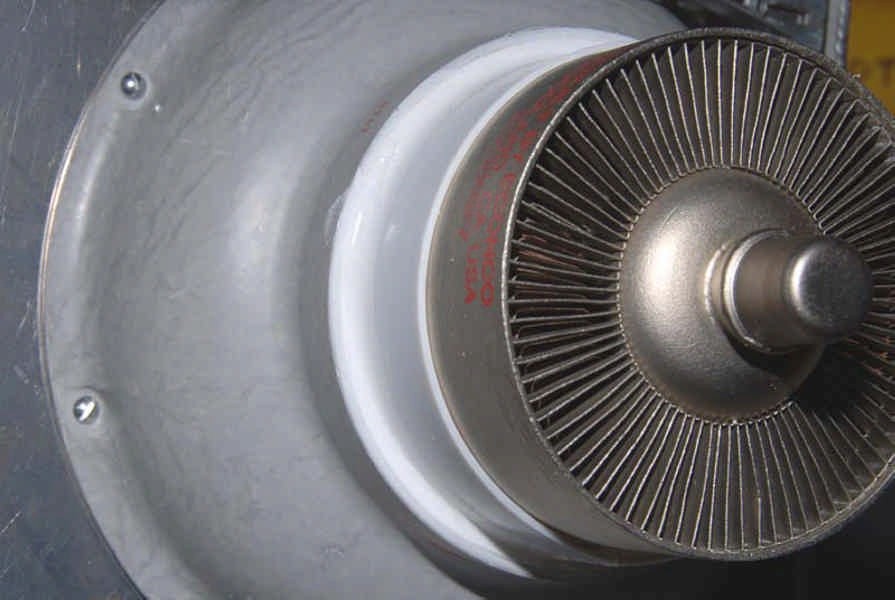

5: The space difference between the oversized chimneys and the tubes was filled by
    inserting a 2" x 13 9/16" strip of .060 inch thick teflon and "glueing" them in with GE
    Silicon Kitchen and Bath caulk.

CATHODE INPUT WIRING:

photo:  cathode coupling caps     photo:  cathode terminal strip     photo:  keying power supply     photo:  meter shunt and test switch     photo:  overview bottom
         6                         7                        8                        9                          10

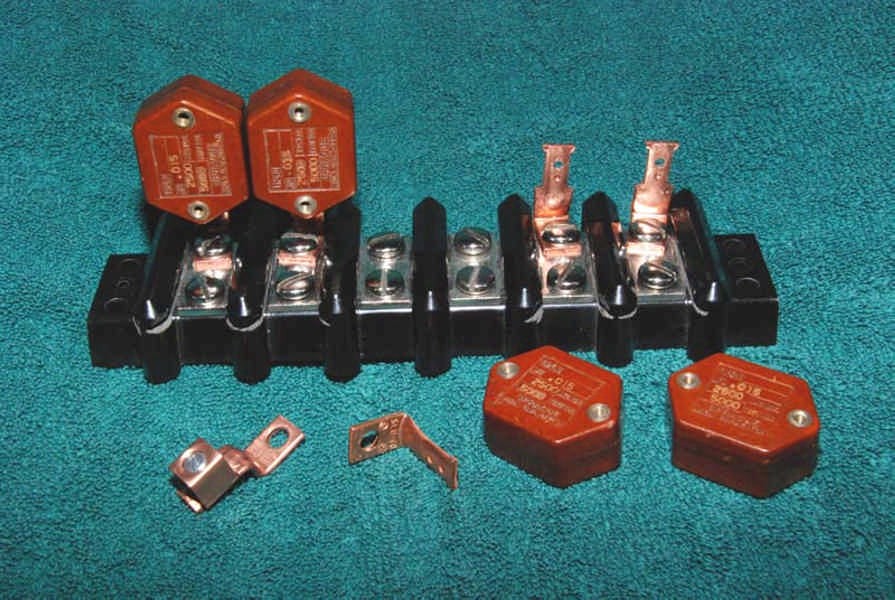

6:   Method of mounting the .015 ufd, 2500 V transmitting capacitors to the 8 1/2
      inch long Bakelite terminal strip.

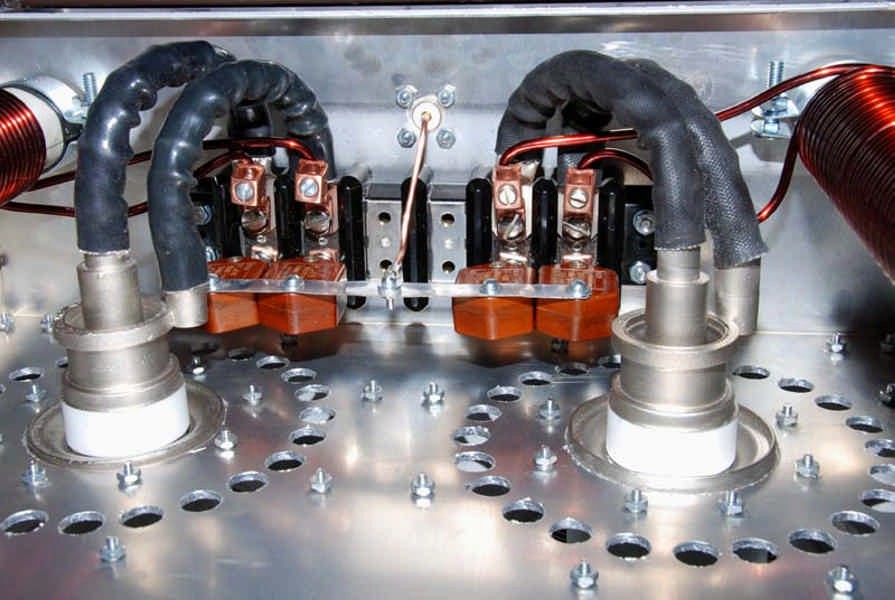

7:   Overview of RF input circuit with dual 180 uHy, 76 amp filament chokes and .015
      coupling capacitors.

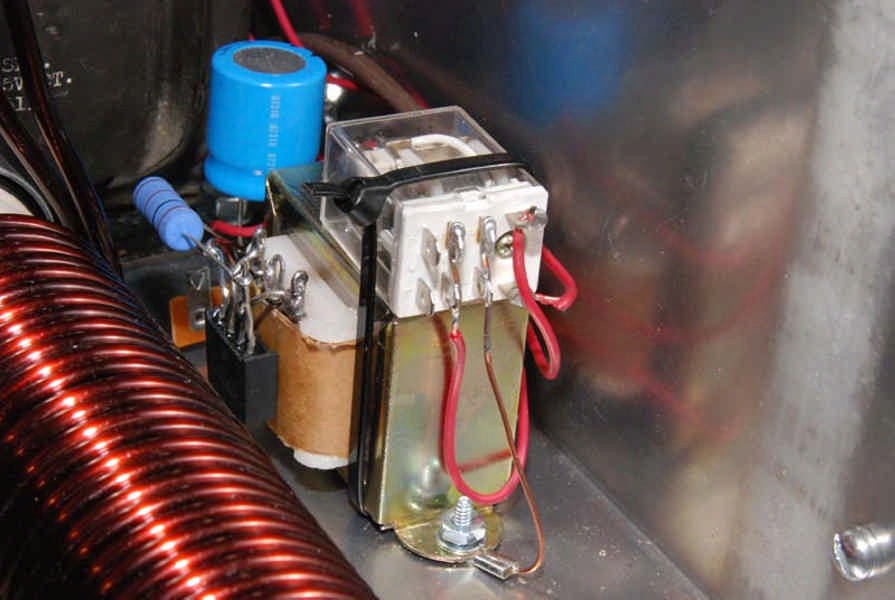

8:   Shown is the relay that grounds the tube cathodes and the 12 VDC power supply.

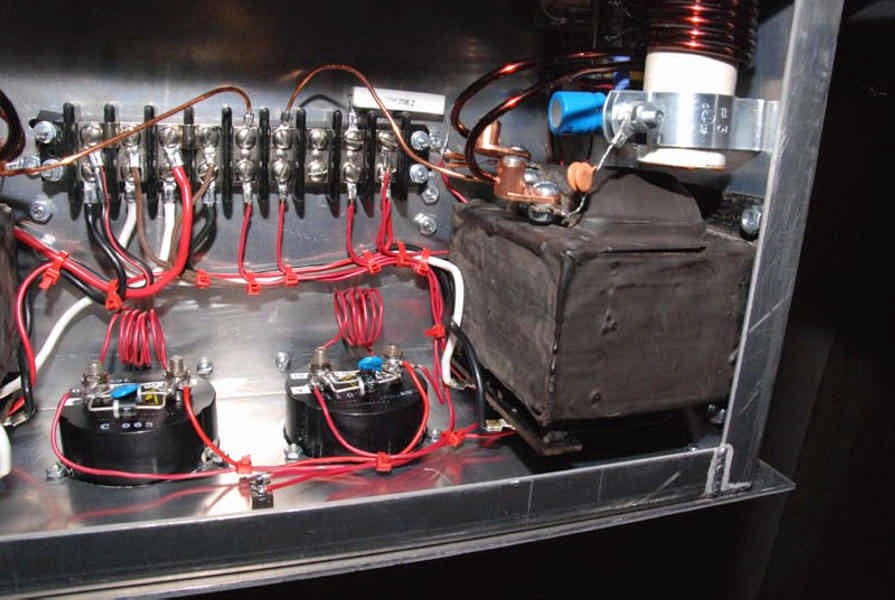

9:   Homebrew cathode ammeter shunt (red coil) and front panel test switch.

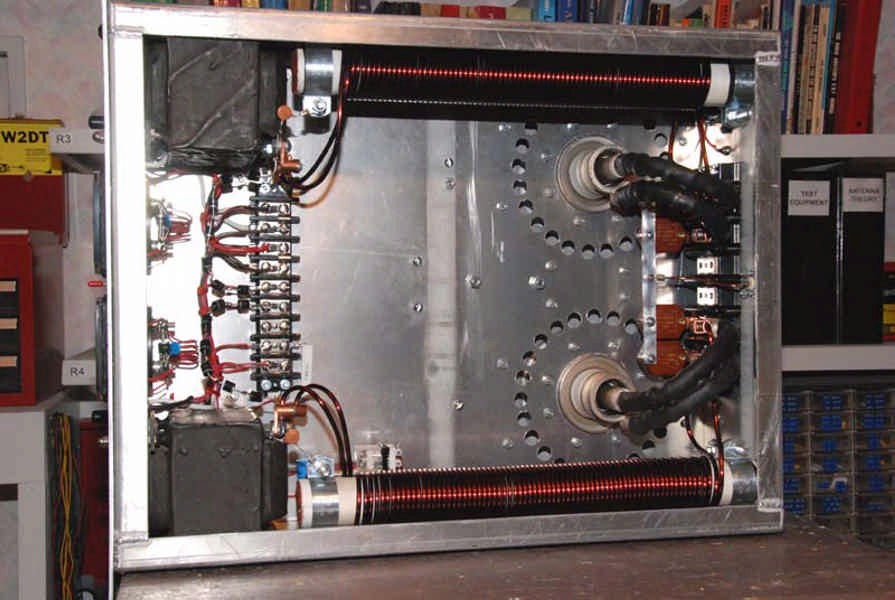

10: Size of chassis: 22" x 17" x 6".  Overview of cathode wiring showing the two Peter Dahl
      180 uHy 75 amp filament chokes.
Choke Construction:  16 inches long, 38 bifilar
      turns (by count 76 wire turns divided by 2) of #8 wire wound around 7 ferrite rods on
      a 1 1/2 inch diameter form.  (Not sure how many rods sets needed for a length of
     16 inches).  The choke weighs 6.5 pounds.

VACUUM VARIABLE INSTALLATION:

photo:  turns counter     photo:  vacuum variable coupling     photo:  vacuum variable mounting brackets
         11                         12                   13                      14                           15

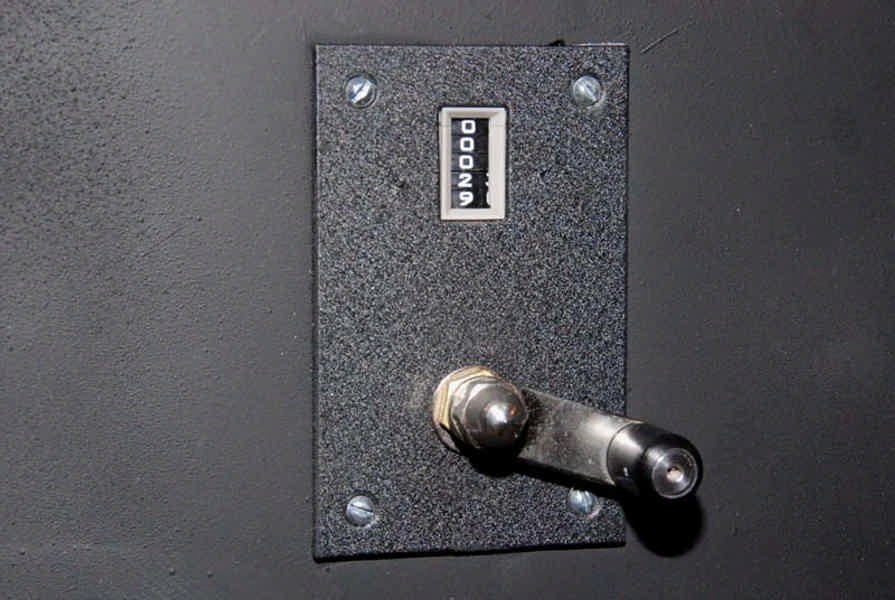

11: Front panel turns counter. (From the Palstar Company in Piqua, Ohio).

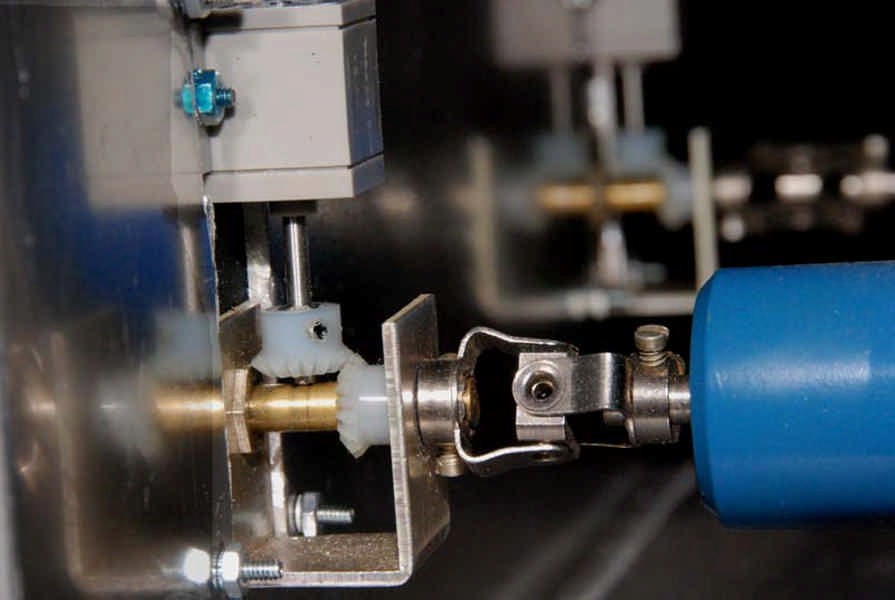

12: Turns counter to vacuum variable coupling.

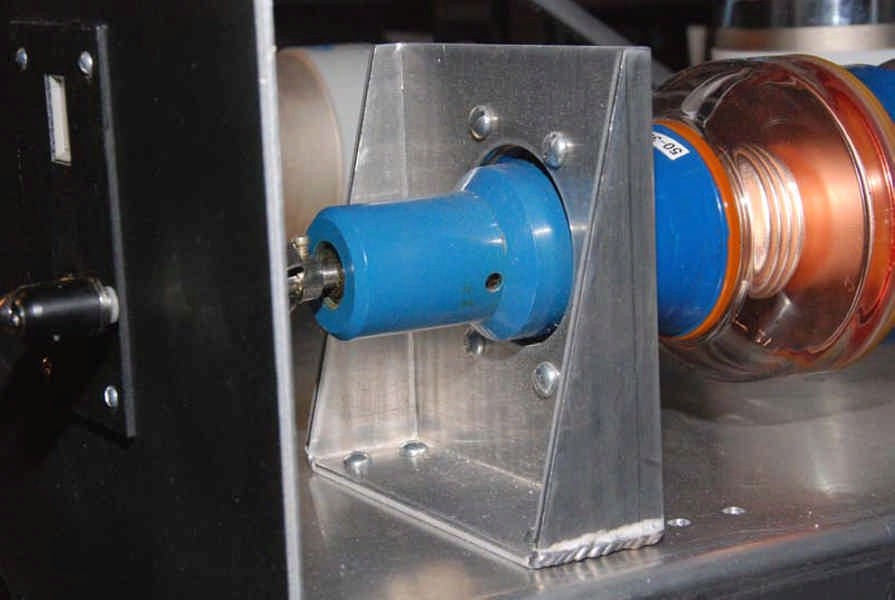

13: Mounting bracket for vacuum variables (custom made by Bayshore Metal Products Inc,
      Keyport, NJ).

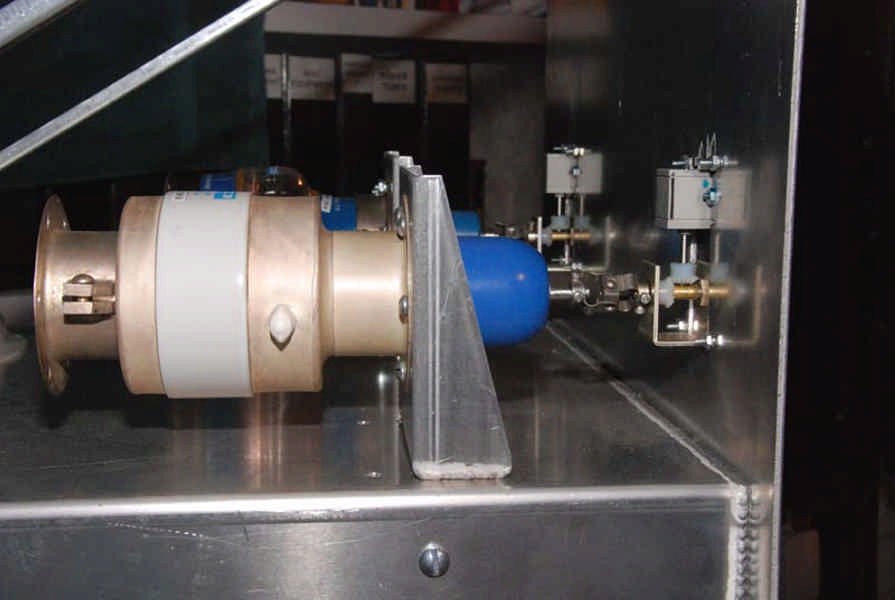

14: 15 KV vacuum variable C1, Jennings UCSL-2750-5N558, measured at 12-540 pf.

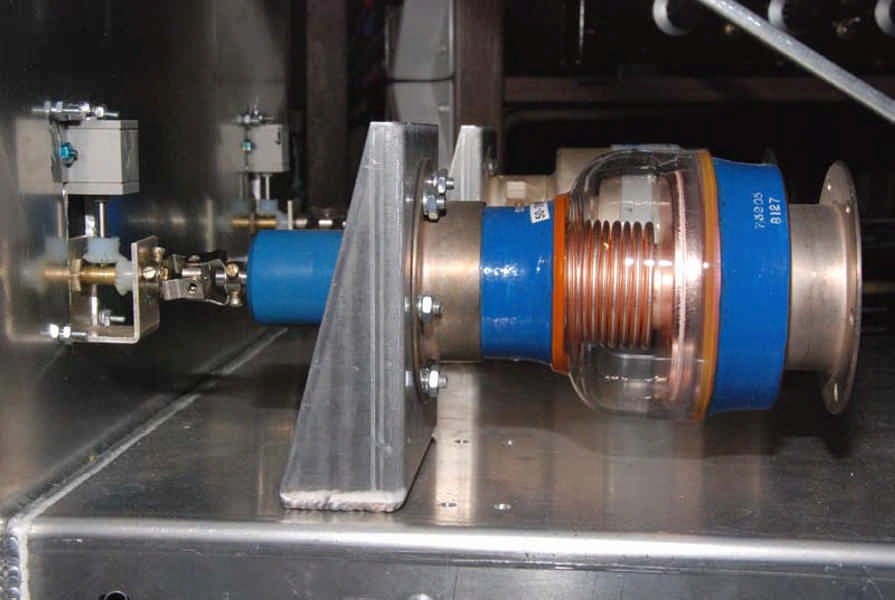

15: 5 KV vacuum variable C2, Jennings CSVF-500-0315, Measured at 50-3300 pf.

PLATE CIRCUIT RF WIRING:

photo:  tube clamp     photo:  5 inch standoff and coupling capacitor     photo:  pi-network     photo:  coil clip for Gates inductor     photo:  output coax connector
         16                      17                       18                       19                        20

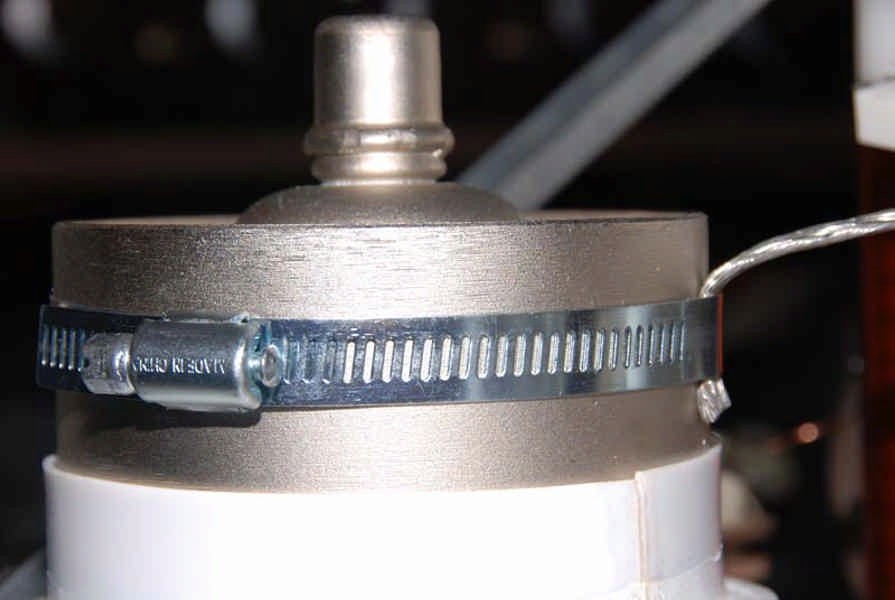

16: Tube connection via standard 4.5 inch dryer clamp and Scotch #25 Electrical
      Grounding Braid.

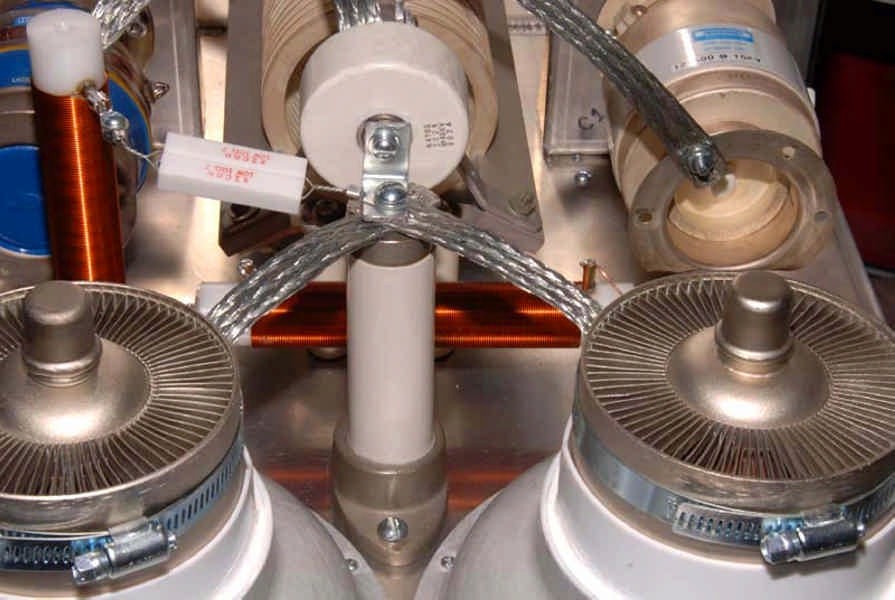

17: Five inch tall standoff insulator with 1/4 inch threads, central support for the plate
      connection, the 2020 pf, 40KV, 15 amp plate coupling capacitor and the 10 ohm, 10
      watt glitch resistors.

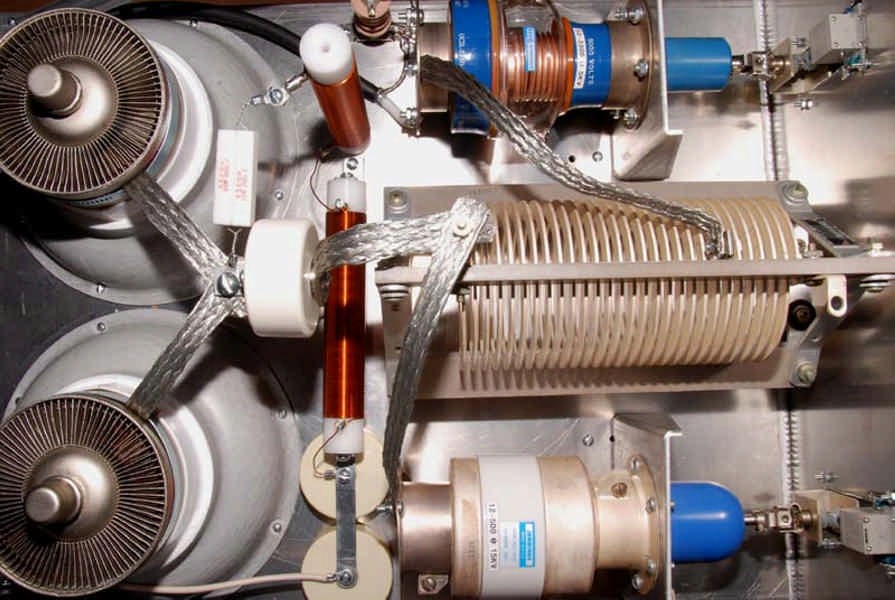

18: Pi-network connections. Gates inductor 3 9/16" dia, 7 1/4" long, 28 turns.

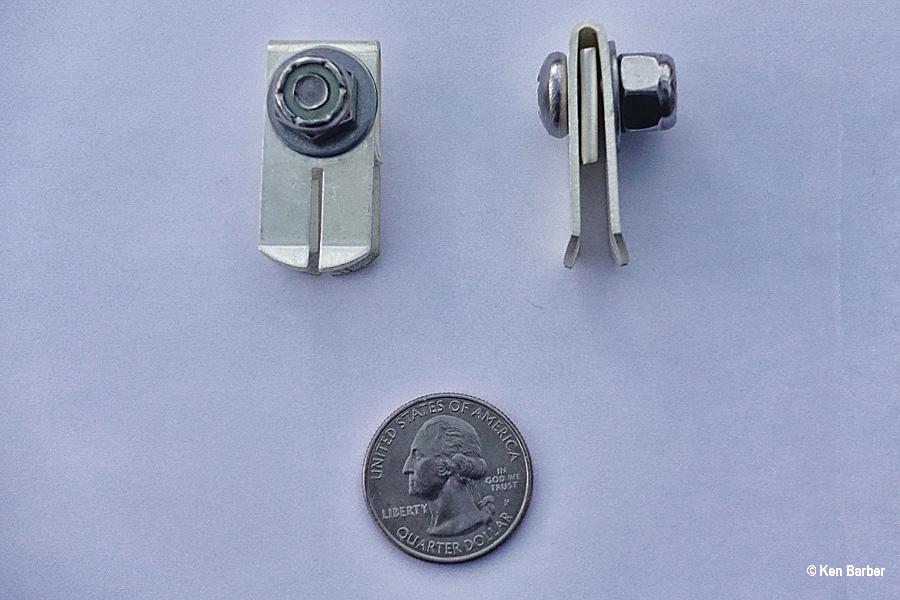

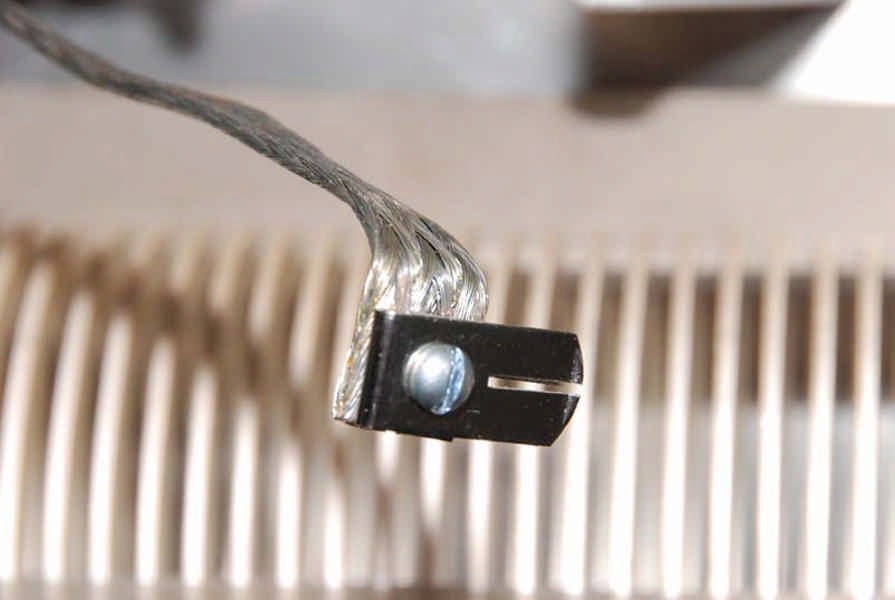

19: Inductor clip, 15 amp (Viking Electronics Technologies, Ltd, Lindenhurst, NY).

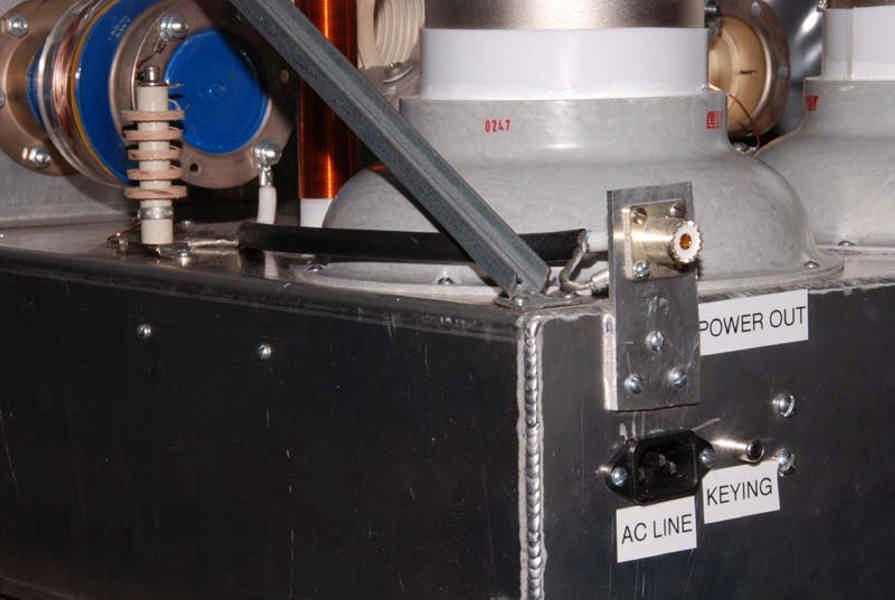

20: Power out coax connector, AC line connector, RCA keying jack and 1 mHy safety
      choke.

PLATE CIRCUIT HIGH VOLTAGE WIRING:

photo:  back panel B+ connector     photo:   plate B+ bypass capacitors     photo:  B+ choke #1     photo:  B+ choke #2     photo:   B+ glitch resistors
         21                      22                      23                       24                        25

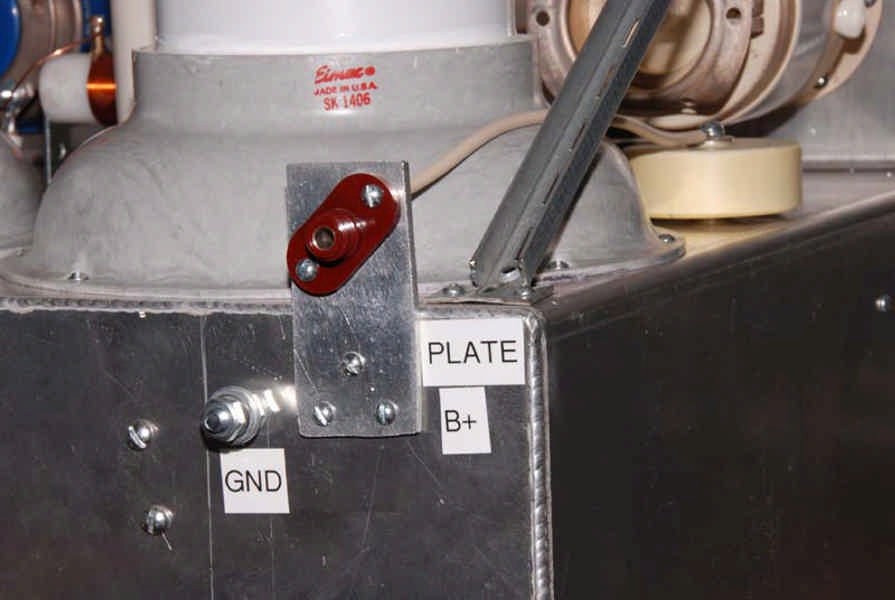

21: Millen high voltage connector and ground lug.

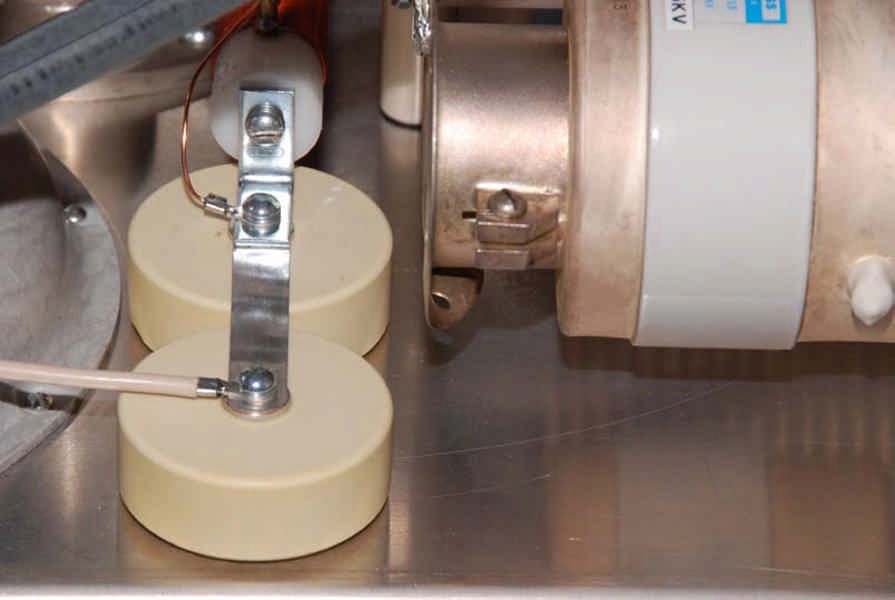

22: B+ bypass caps, each 2720 pF, 30KV, 15 amps.

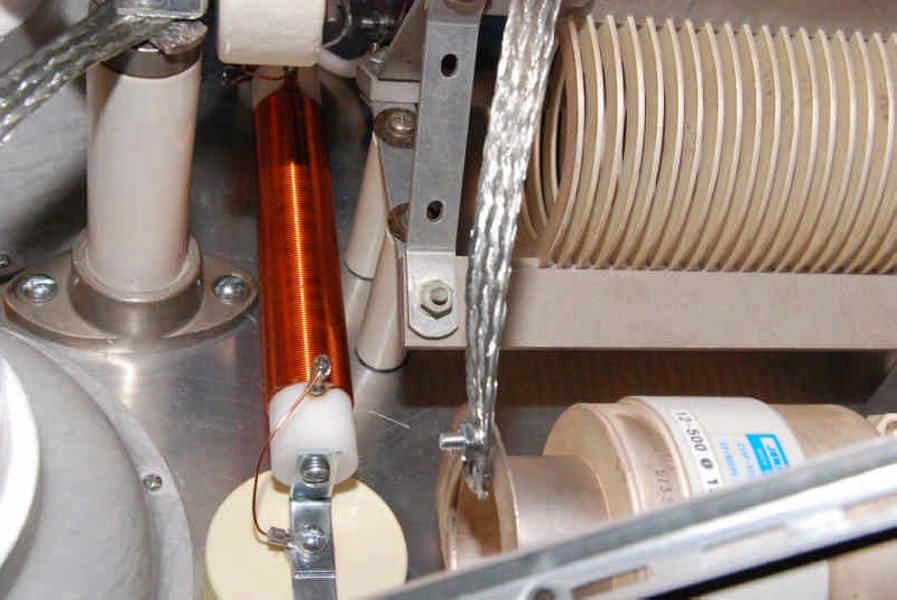

23: Plate choke #1, Peter Dahl 90 uhy, 3 amps.  CONSTRUCTION:  6.7 inches long, 5/8
      inch diameter grooved Delrin Rod, 123 turns of #24 magnet wire.

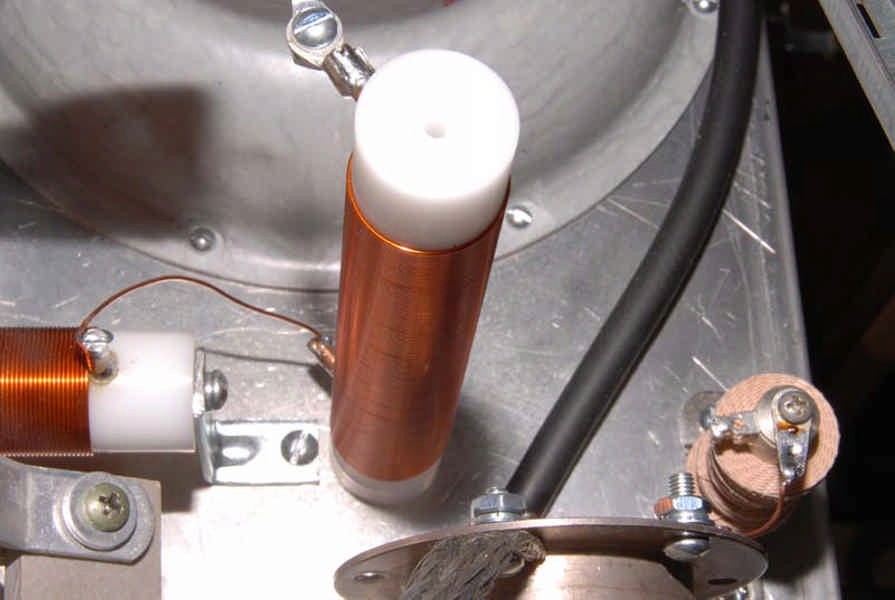

24: Plate choke #2, 90 uhy, 3 amps.

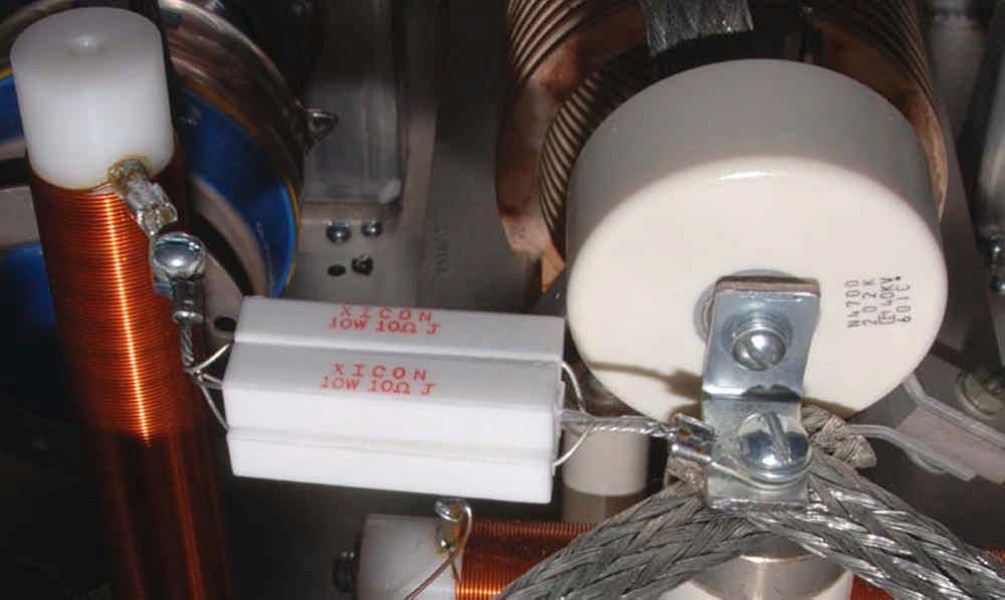

25: Glitch resistors, (4) 10 ohm, 10 watt units. I have a minority opinion on glitch resistors.
      Most designers plan on having the resistor absorb the hit and discharge the capacitors.
      When there is a glitch, I want to know about it immediately. The resistors will explode
      and then I vacuum out the remains. When 150 MFD capacitors are charged to 5000
      VDC there is serious short circuit current. For fusing, I also have a 4 inch piece of
      magnet wire in the B+ line.

HIGH PRESSURE BLOWER:

photo:  motor label     photo:  blower label     photo:  blower view 1     photo:  blower view 2     photo:  blower view 3
         26                      27                       28                       29                       30

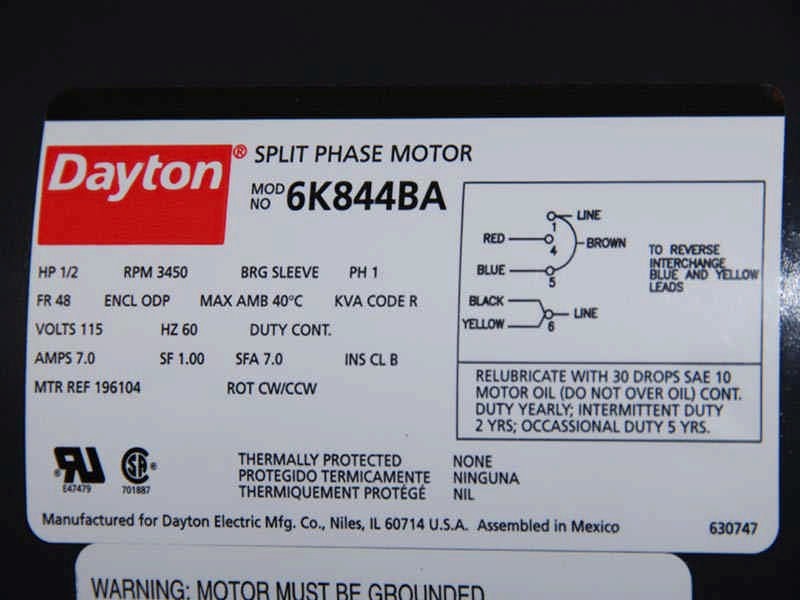

26: Label on 1/2 horsepower, 3450 RPM Dayton split phase motor.

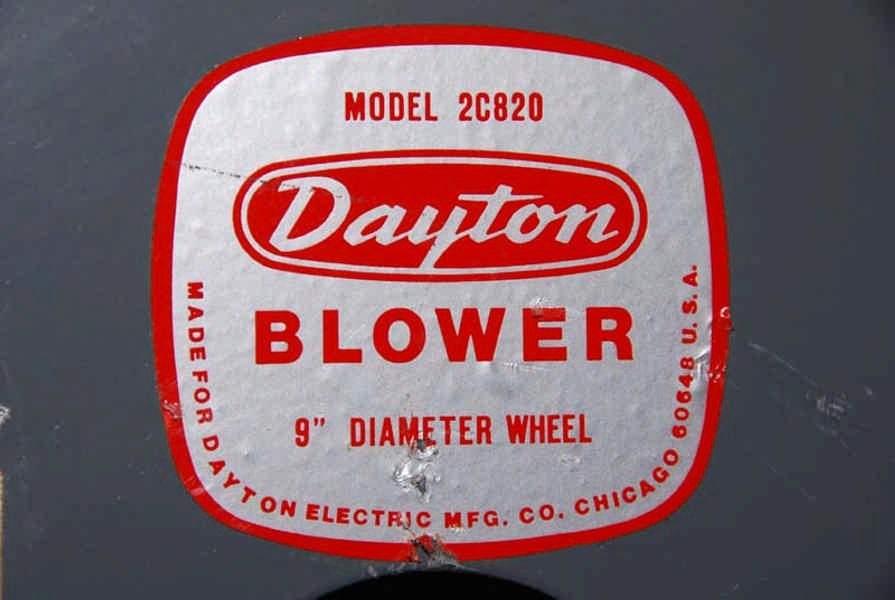

27: Label on 9 inch diameter Dayton blower.

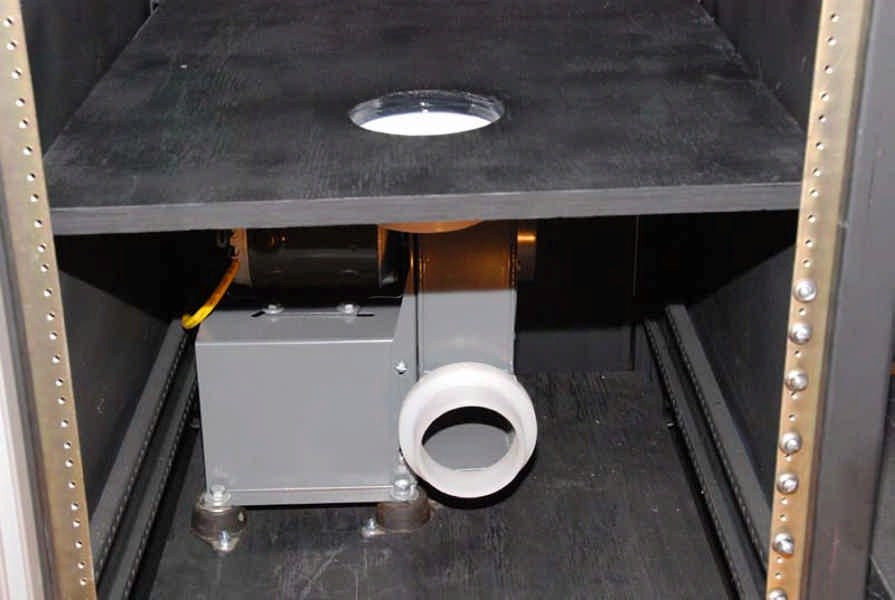

28: 4 inch hole drilled into the 3/4 inch plywood shelf which holds the RF DECK.

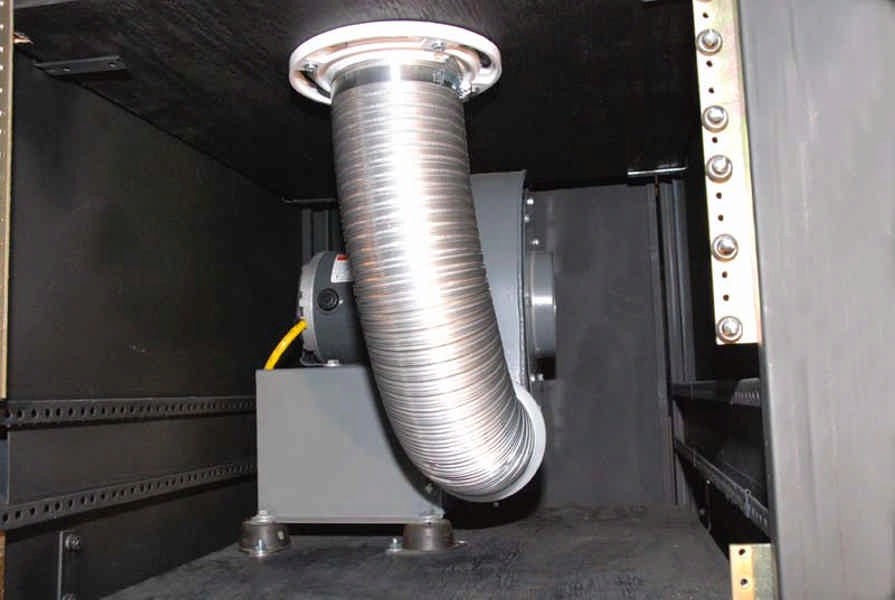

29: Dryer hose installed.

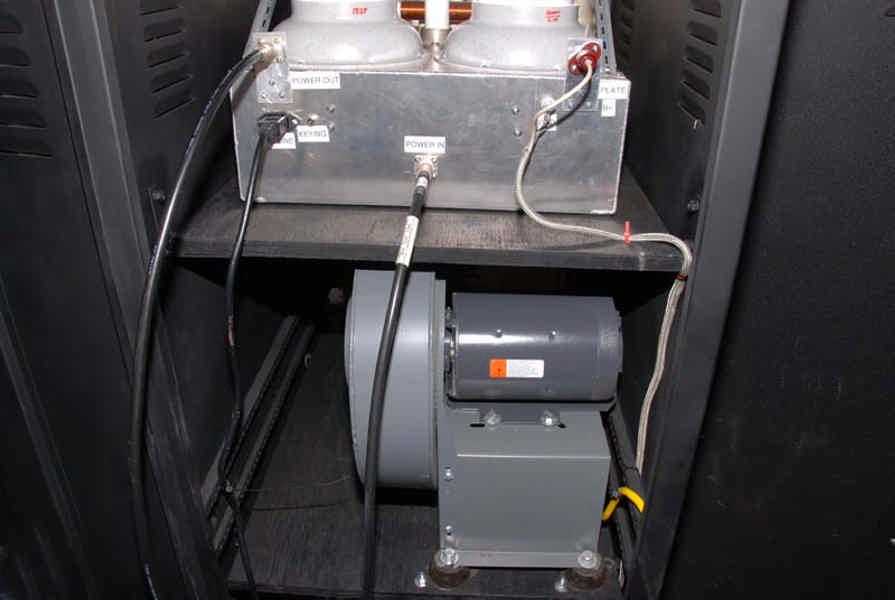

30: Back of RF DECK. More than enough air pressure comes up through the bottom of the
      chassis to cool the tubes.



CHASSIS TO FRONT PANEL HARDWARE:



The chassis was braced to the front panel by shelf standard rods at both rear corners of the chassis.  The ends of the shelf standard rods were cut with a hacksaw and banged flat with a hammer.  Standard 10-32 hardware was used to fasten the end of the standards to the front panel.



SCHEMATICS:

schematic:  plate circuit     schematic:  cathode circuit     schematic:  high voltage power supply     schematic:  keying relay power supply
          31                      32                         33                          34

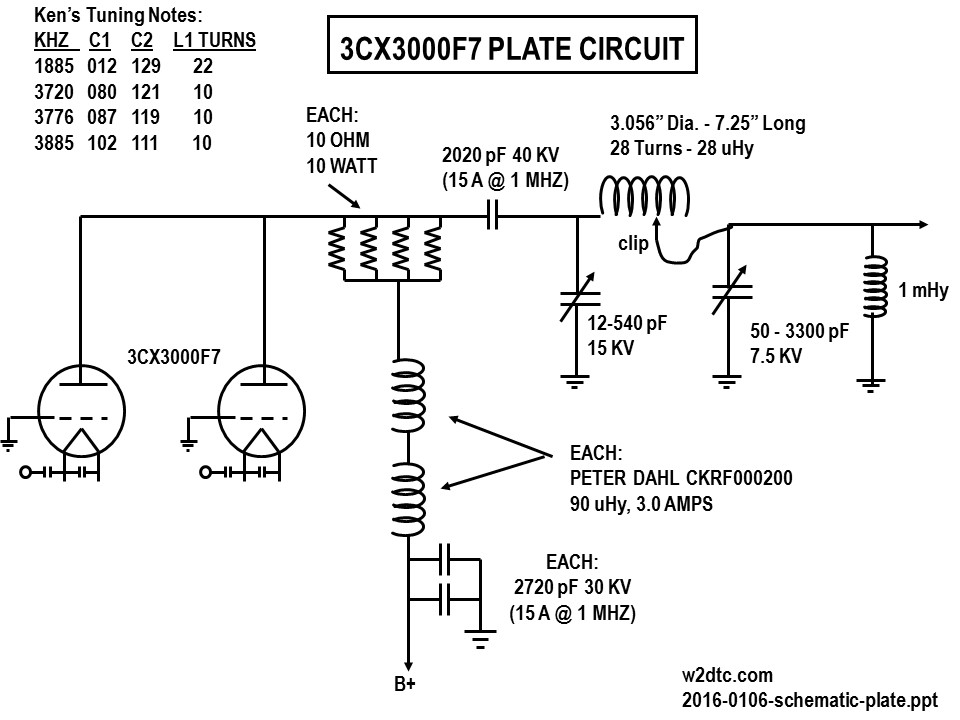

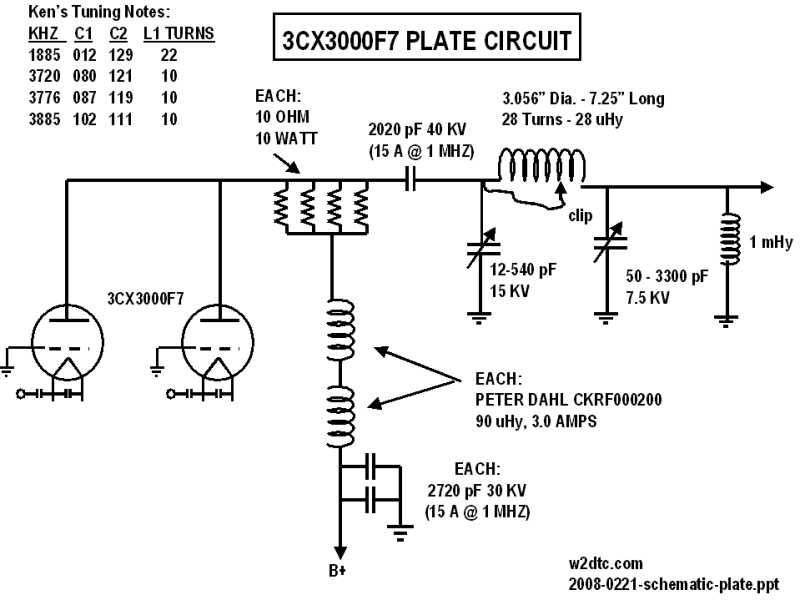

31: Schematic of the plate circuit.

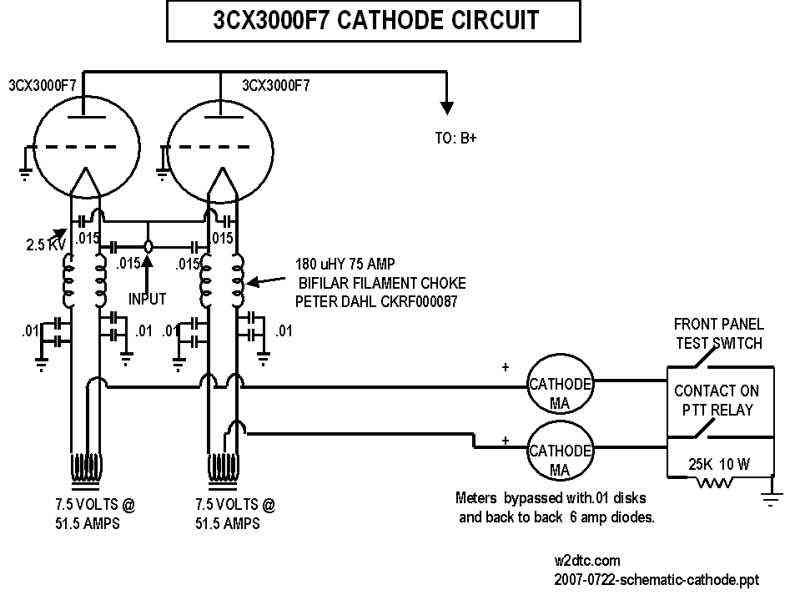

32: Schematic of the cathode circuit.

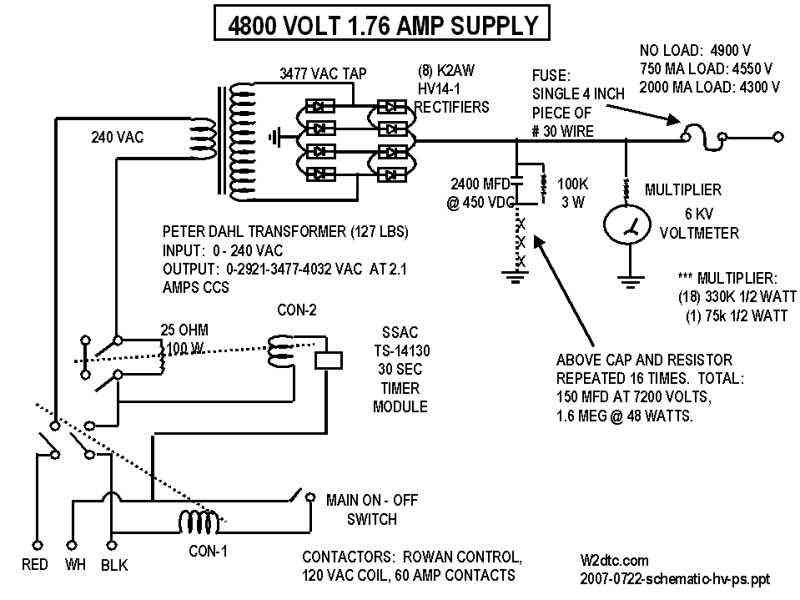

33. Schematic of the high voltage power supply.
Click HERE to see that power supply.

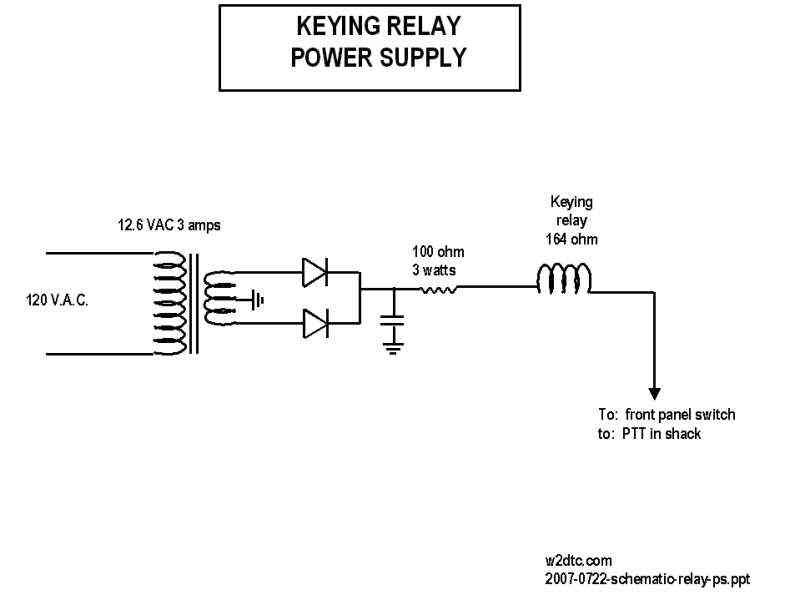

34: Schematic of the keying relay power supply.

DATA AND SETUP FOR RUNNING TESTS:

speadsheet of vacuum variable C1     speadsheet of vacuum variable C2     schematic:  ballpark for finding pi-network values     block diagram:  test setup
           35                       36                        37                        38

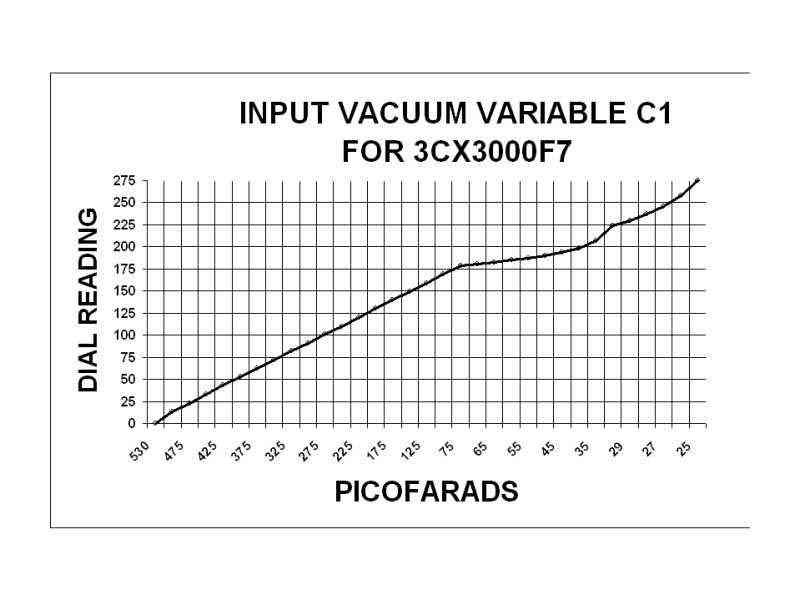

35: Turns counter dial reading vs picofarads for input capacitor C1.

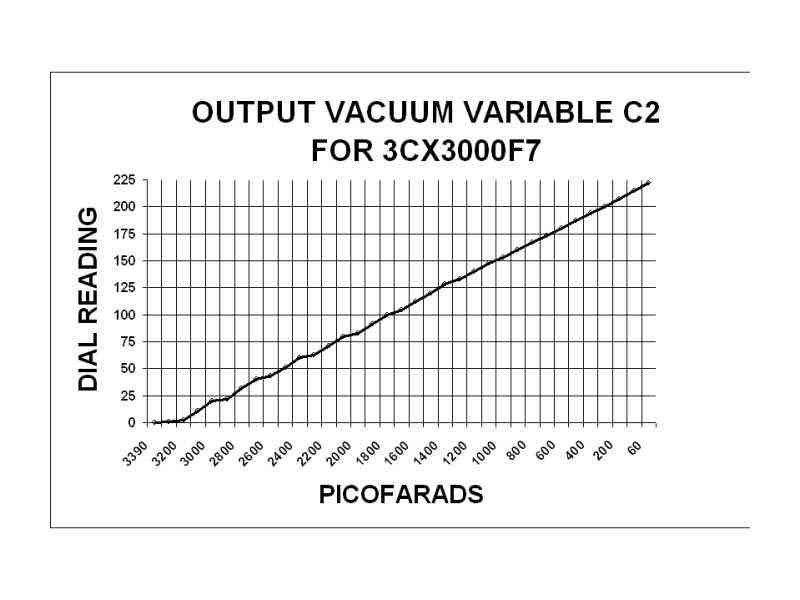

36: Turns counter dial reading vs picofarads for output capacitor C2.

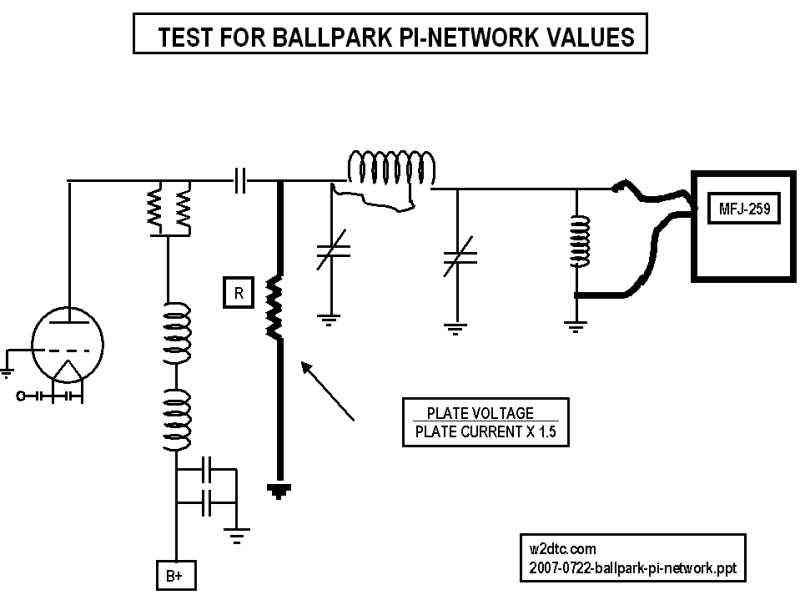

37: Test setup for ballpark pi-network values. With a capacitance checker, I found the
      values of the unconnected input and output vacuum variables and set them to the
      values of the formulas for a Q of 12. With aligator clips I attached a resistor from plate
      to ground equal to the calculated plate resistance. I adjusted the coil taps until I
      obtained a low SWR on the MJF-259. This is not perfect test, but it gets the
      pi-network into the ballpark. (All power is off for this test).

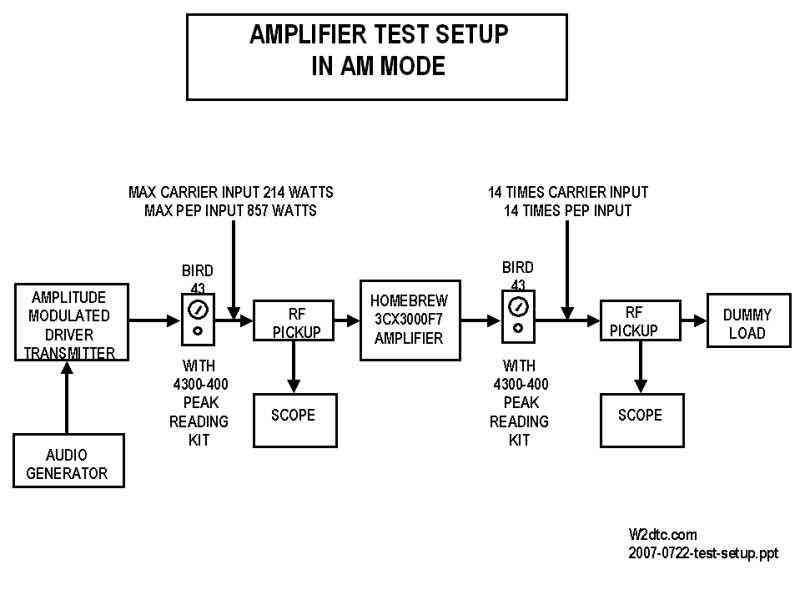

38: Block diagram of test setup.

TEST RESULTS AND OBSERVATIONS:

1. The initial tests were made in class AB2. In AB2, this amplifier will put out twice the
    output of the single 3CX3000F7 and requires twice the drive.

Click HERE to see that amplifier.
2. Bias diodes are unnecessay with the 3CX3000F7 in a cathode driven grounded grid
    configuration. With the grids grounded directly to the chassis, the center tap of the
    filament transformer can be switched directly to the chassis to activate the amplifier.
3. Under full load, there is no significant difference in output between the amp running at
    4900 volts on the plate or 4300 volts. With the higher plate voltage, the idling current
    is higher and slightly less drive is required for the same output power.
4. Tuning for maximum power the amp produces 20 times the input power with fairly good
    efficiency; however when adjusted with a signal generator and a scope, the output
    power is only 14 times the input at aproximately 30% efficiency. It is clear that an
    oscilloscope is an absolute essential when using linear amplifiers.





Oh no............ I converted the big amp to a ONE HOLER !

click on any photo to ENLARGE

The big amp ran flawlessly for 4 years until it had it's first problem  (found a shorted .015 transmitting mica cap in one of the cathodes).  As an old guy, I realized that I could no longer lift the RF Deck out of the rack without help.  I decided that the extra 3DB power difference (1/2 an S unit) was not worth the extra physical weight so I removed one of the tubes.  The plan also included replacing the very high noise level cooling system.

 THE ORIGINAL 'TWO HOLER':

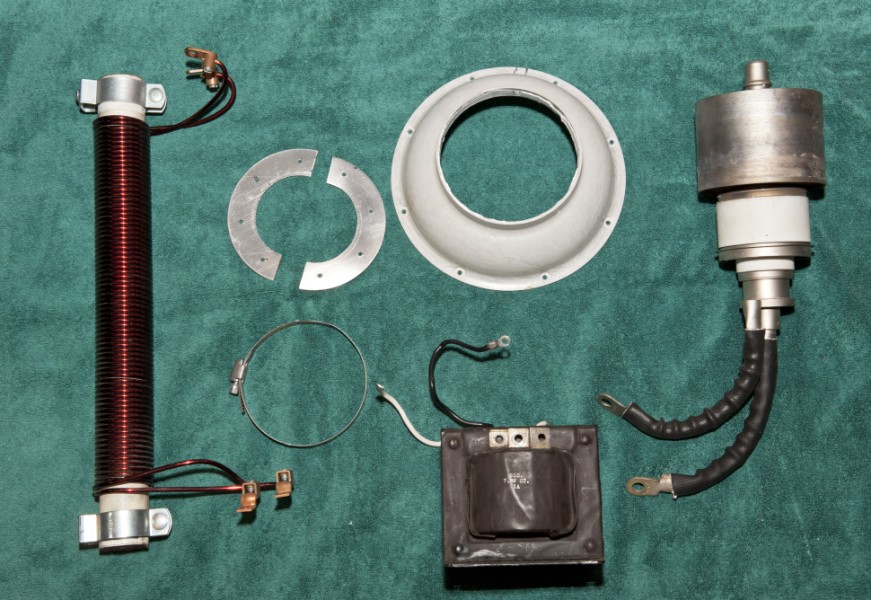

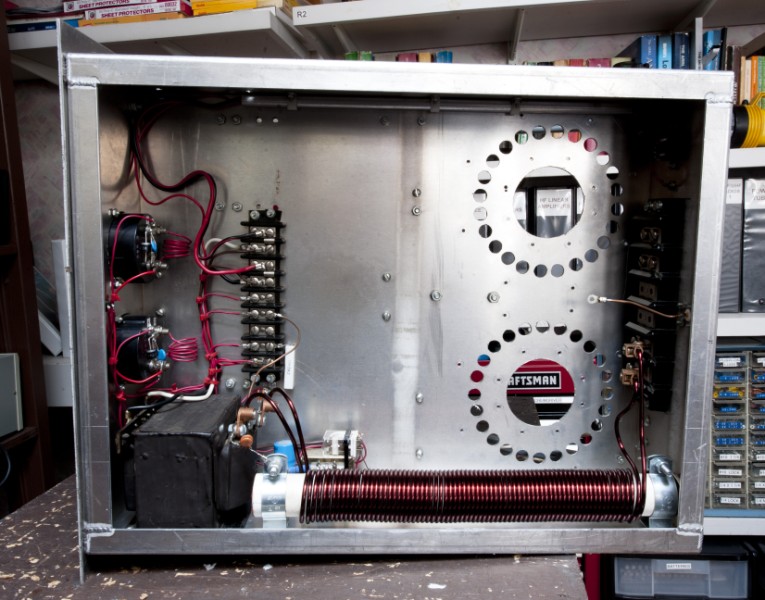

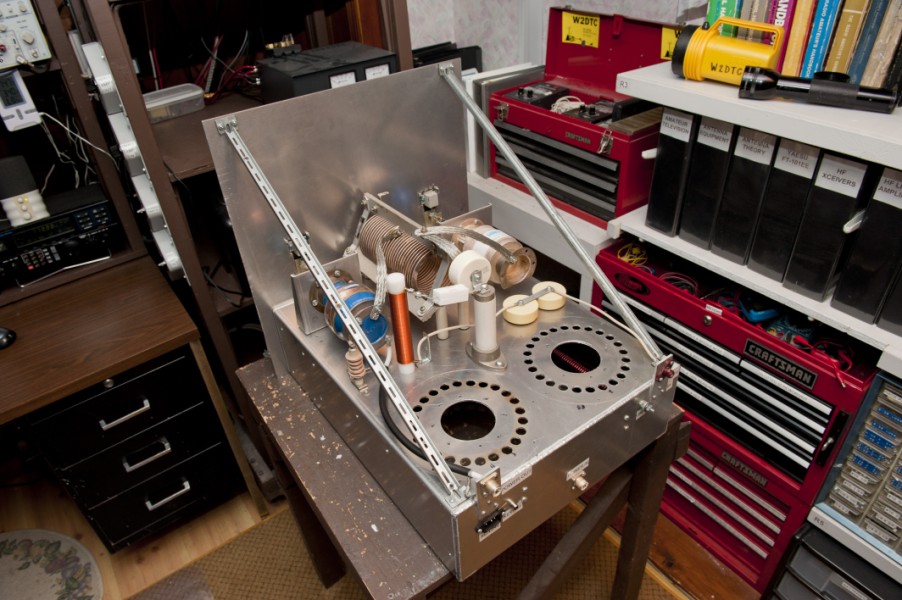

THE STRIPPED DOWN CHASSES                    AND SPARE PARTS.

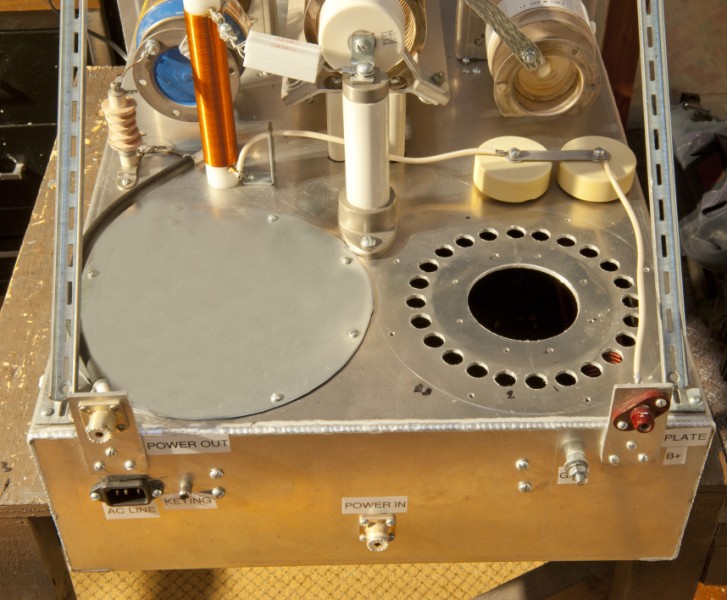

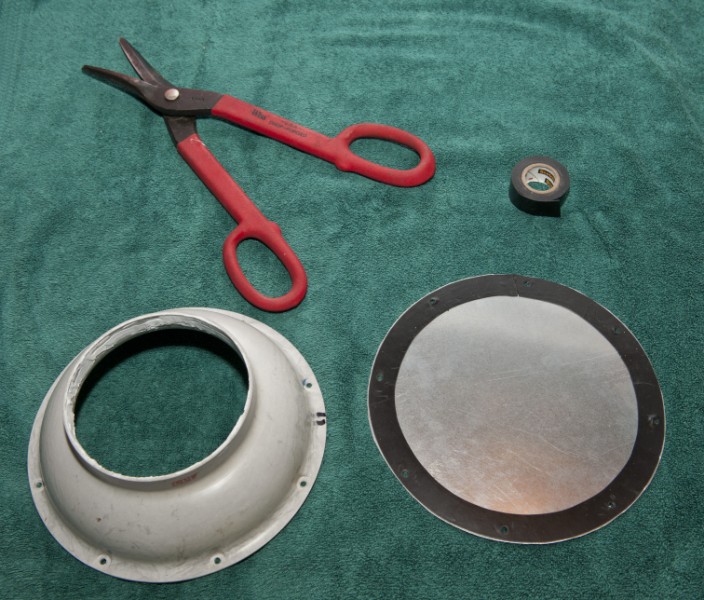

COVERED THE MISSING TUBE HOLE.


Using the chimney as a template, I cut a thin piece of aluminum stock and lined the edge with rubber tape as an air tight gasket.

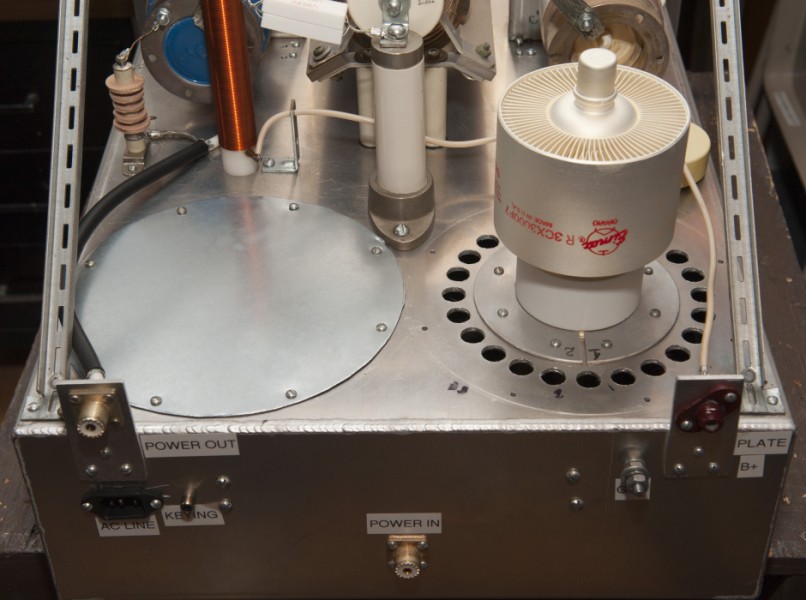

INSTALLED A NEW EIMAC 3CX3000F7.


A few years ago I started seriously collecting amp parts.  As I was working on this project, I had this nagging feeling that perhaps I had purchased a new tube sometime back. Sure enough, I found the shipping box with the Eimac Rebuilt.  While I usually use Econco rebuilts, this ebay purchase was at a very reasonable price.

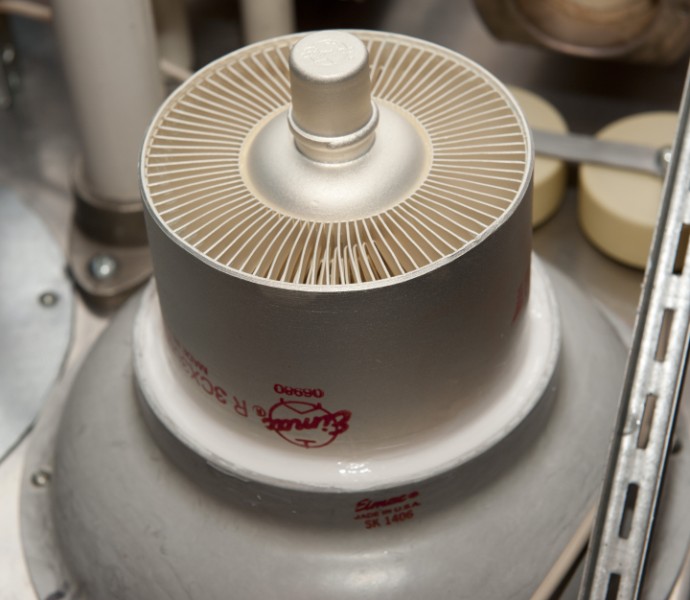

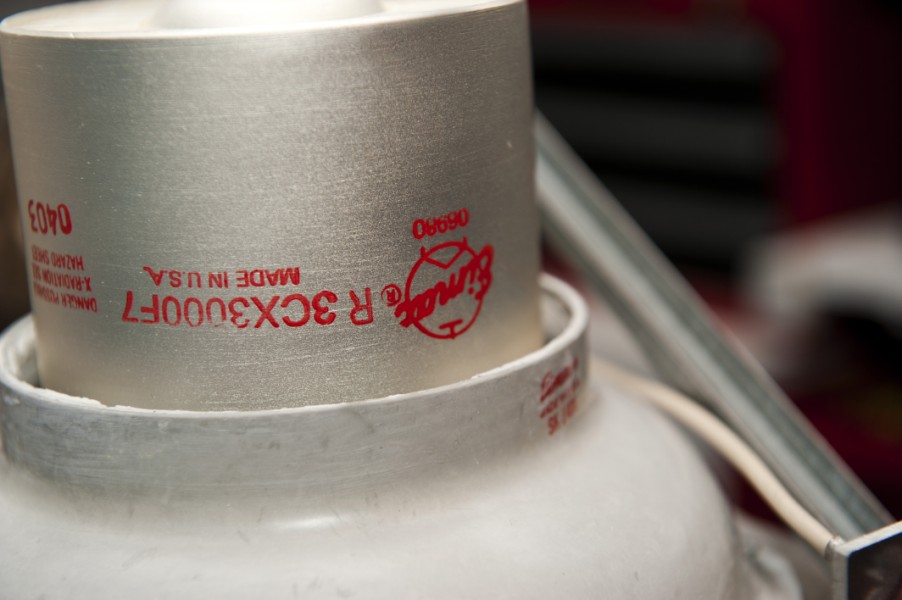

SEALED THE OVERSIZED CHIMNEY.

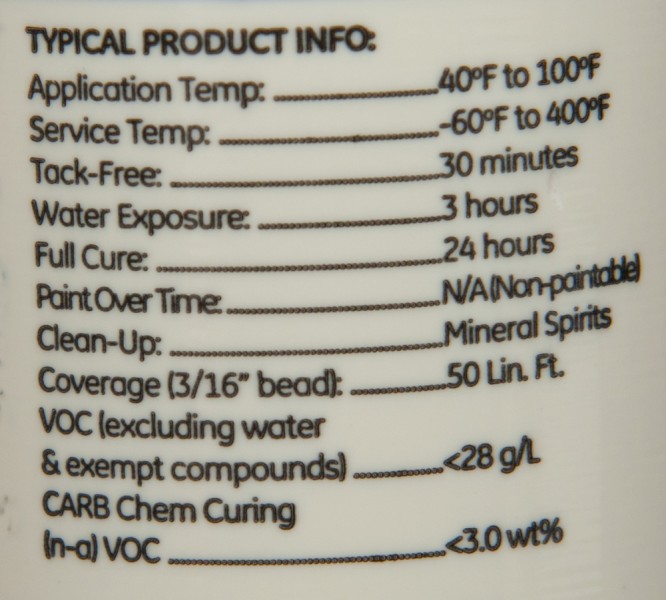

In the original configuration I chose the oversized SK1406 chimneys.  As you can see in the first photo, there is a gap between the tube and the chimney.  I filled the gap with GE Silicone II, which has an operating temperature of up to 400 degrees Fahrenheit.

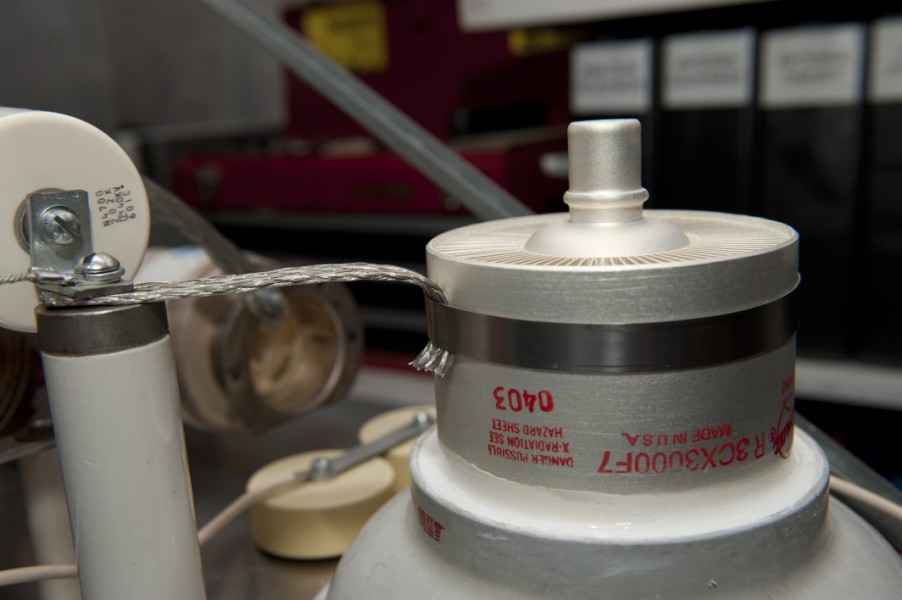

COMPLETED THE PLATE CIRCUIT WITH THE BRAIDED STRAP AND CLAMP.

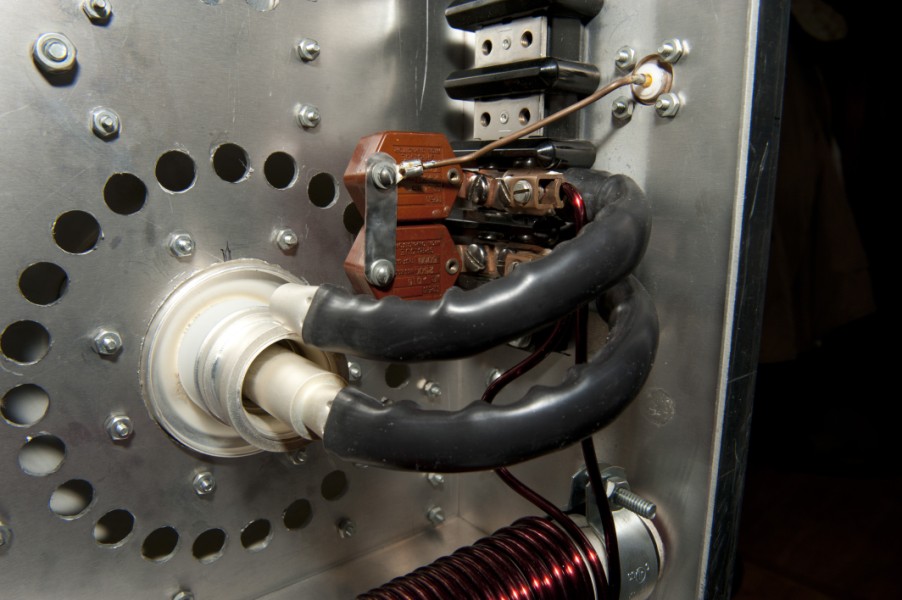

COMPLETED THE CATHODE CIRCUIT WITH REINSTALLATION OF MICA CAPS.

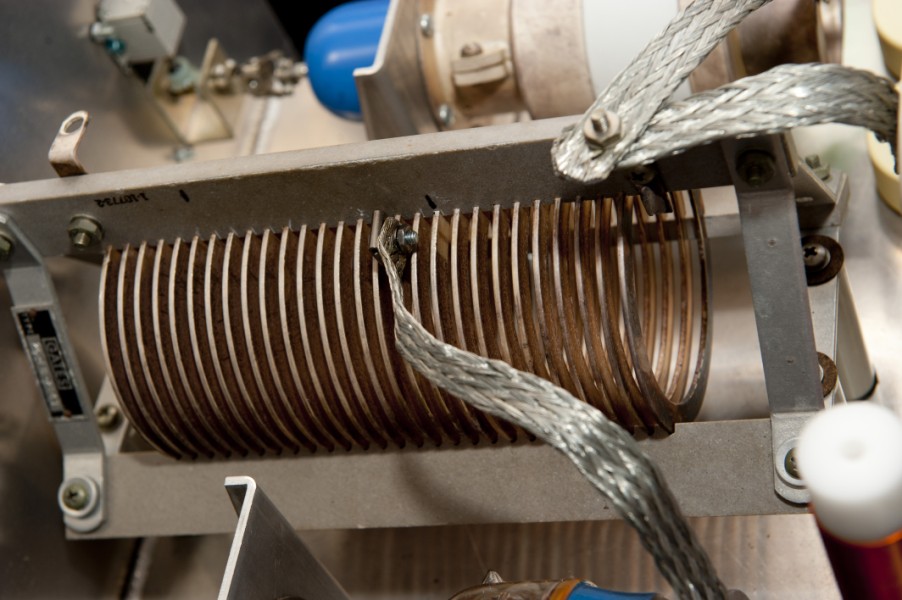

CHANGED PI-NET INDUCTANCE TAP.


Removing one of the tubes and running less plate current raised the plate resistance, requiring two more turns on the pi-net coil to maintain a calculated Q of 12.



REPLACED THE COOLING SYSTEM                           WITH THIS ONE.

photo:  blower view 1     photo:  blower view 2

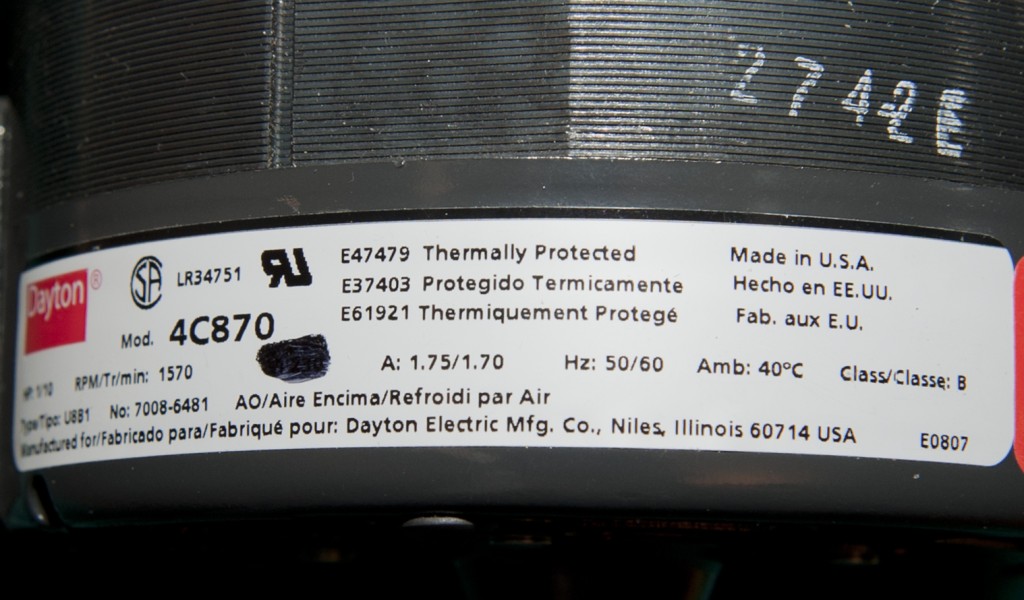

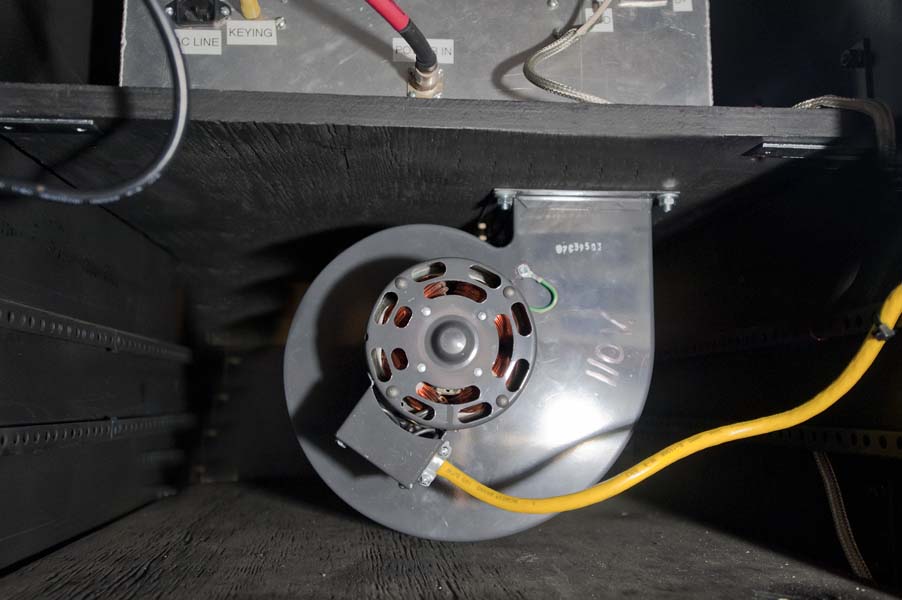

The original blower was a 1/2 HP very loud system.  I replaced it with a much quieter 495 CMF fan.



SCHEMATICS:

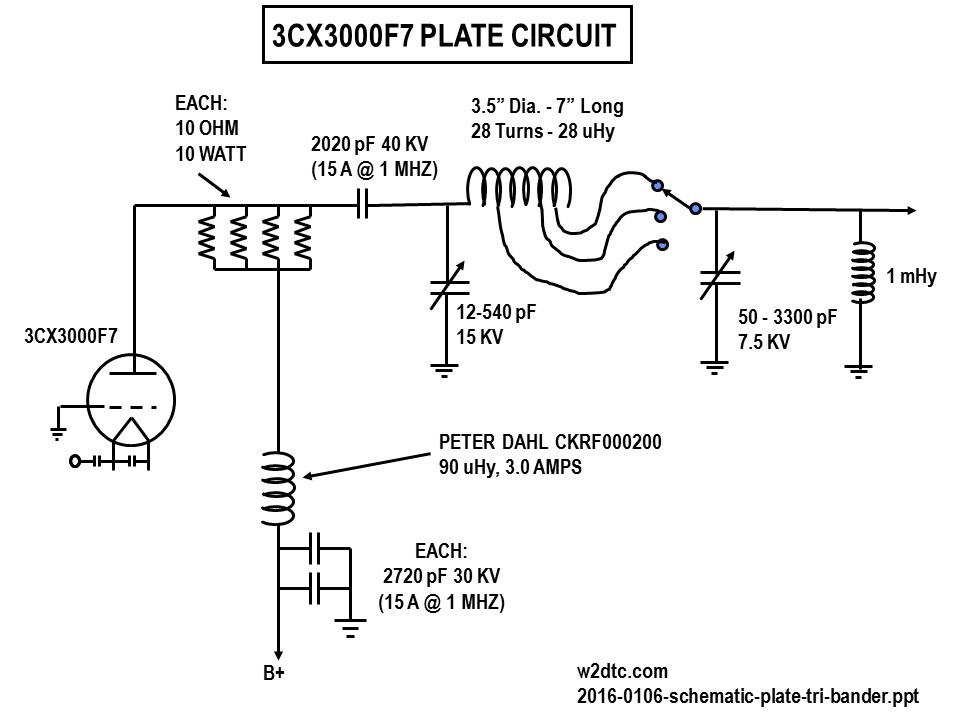

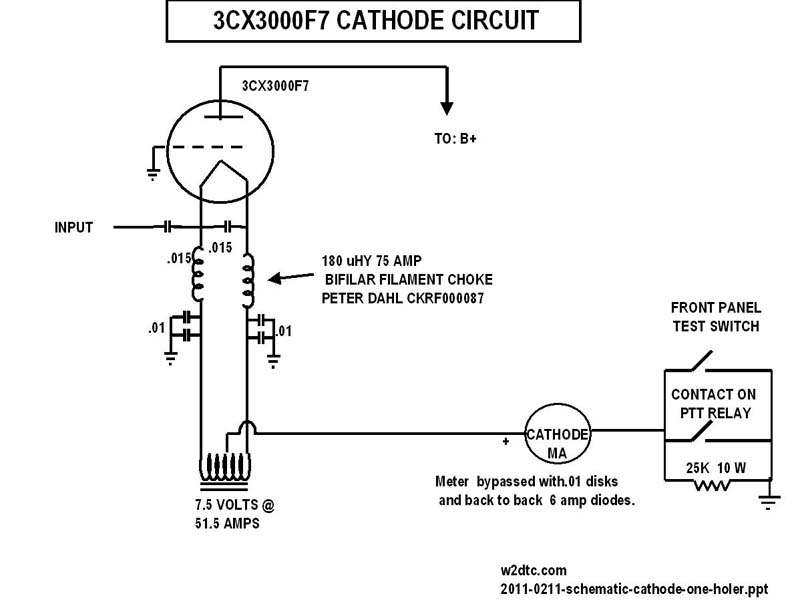

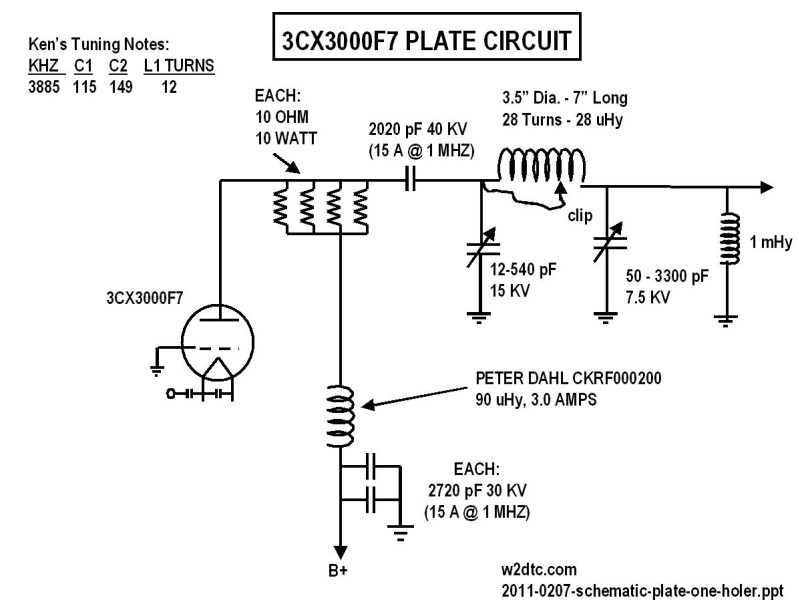

  Plate circuit                      Cathode circuit



TEST RESULTS AND OBSERVATIONS:

1.  The amplifier came online with no problems.  It puts out 1/2 the power of the two holer.

2.  The cooling blower is much quieter than the original.

3.  The additional turns on the pi-net inductor worked fine.

4.  I'm able to install the RF deck without the need of a helper.
